1995 Report on West Falmouth Harbor Nitrogen Management
Related Pages:
1995 Wastewater Facility N loading |
West Falmouth 1996 update |
West Falmouth 1997 update
west-falmouth-update-jul95.pdf pdf version of this page
Board of Selectmen July 21, 1995
59 Town Hall Square
Falmouth, MA 02540
Re: Update on Buzzards Bay NEP assistance on West Falmouth Harbor Nitrogen
Management needs
Dear Honorable Selectmen,
As you may recall, the Buzzards Bay NEP(1) has been providing technical and financial
assistance to the Town of Falmouth to identify nitrogen management needs for the West
Falmouth Harbor drainage basin. Among our efforts:
1) Last year the Buzzards Bay NEP awarded a $10,000 grant to the town to
conduct a flushing study for West Falmouth Harbor. This award was
supplemented by $10,000 raised by the town at town meeting, and a $7,000 grant
for the Cape Cod Commission. With this funding, the town awarded a contract
to Aubrey Consulting Inc. (ACI), which completed its study earlier this year, and
which is now under review by the town, the Cape Cod Commission, and the
Buzzards Bay NEP.
2) Last year, with the approval of the Board of Selectmen, the Buzzards Bay
Project tested water samples from groundwater monitoring wells in conjunction
with ongoing monitoring being conducted by the town and overseen by
Falmouth's Utility Manager Raymond Jack.
3) The Buzzards Bay NEP has been working with the Falmouth Planning Board to develop
a parcel level buildout analysis and nitrogen loading analysis for the West Falmouth Harbor
drainage basin.
The Buzzards Bay NEP has prepared the enclosed progress report to summarize the findings of
these evaluations and to assist the town of Falmouth in its efforts to develop a nitrogen management
strategy for West Falmouth Harbor. Some of the points made in the progress report include:
Overall, West Falmouth Harbor now has good water quality and ranks in the top 1/3 of Buzzards
Bay embayments. The upper most regions of the estuary however have elevated nitrogen
concentrations and the embayment will likely be sensitive to additional inputs.
In an earlier report (also enclosed), the Buzzards Bay NEP identified the town's sewage
treatment facility as the principal source of nitrogen in the watershed. A new delineation prepared
by the Cape Cod Commission now means that the Falmouth Solid Waste Disposal Facility site is
also within the harbor's watershed. The plume from the landfill, particularly from the area of the
now abandoned septage lagoons, are a very significant source of nitrogen to the bay. The plume
from the abandoned lagoons, which were in use from 1975 to 1987, is now in transit to West
Falmouth Harbor, but it is unknown if it has yet reached the estuary. This spring, wells monitored
by the town near the landfill showed ammonia concentrations in excess of 120 ppm still leaching
from these buried abandoned lagoons. Since most of this ammonia is likely converted to nitrate
downstream in the plume, a plume with a concentration perhaps as high as 240 ppm plume of nitrate
(or nitrate plus ammonia) from operation of the septage lagoons is now travelling through the
watershed. These concentrations well exceed state and county drinking water standards of 10 and
5 ppm nitrate respectively.
Existing monitoring well locations downstream of the Town's sewage treatment facility and
landfill are inadequate to document the movement and nitrogen loadings associated with these
plumes.
It appears that the leading edge of the sewage treatment facility plume is now reaching West
Falmouth Harbor. We expect that water quality will continue to decline in West Falmouth Harbor
as the full extent of the plumes from the landfill and treatment facility reach the harbor.
Nitrogen management options for the West Falmouth Harbor watershed include fast tracking the
capping of the portion of the landfill over the abandoned septage lagoons, further enhancing the
nitrogen removal capabilities of Falmouth's sewage treatment facility, limiting inputs from new
development (e.g. changing minimum lot size on unsubdivided land), or requiring the use of
alternative nitrogen removal septic systems on new and existing substandard systems.
The Buzzards Bay NEP would like to continue to assist the Town of Falmouth in its efforts to
manage nitrogen inputs to West Falmouth Harbor. If you have any questions, please do not hesitate
to call me. I would be happy to also meet with you or any town board to further discuss these issues.
Sincerely,
Joseph E. Costa
Executive Director
cc. Brian Currie, Falmouth Planning Department
Rhett Lamb, Falmouth BBAC representative
Raymond Jack, Falmouth Utilities Manager
Bill Owen, Falmouth DPW
Bob White, Falmouth WWTP
Falmouth Board of Health
Tom Cambareri, Cape Cod Commission
George Crombie, DEP-SERO
Ron Lyberger, DEP-BMF
John Higgins, DEP-DWPC
Eileen Gunn, Coalition for Buzzards Bay
John Ramses, ACI
Brian Howes, WHOI
wfalup
Progress Report
Nitrogen Management Issues for West Falmouth Harbor
prepared for the Town of Falmouth
by
J.E. Costa and D.S. Janik
Buzzards Bay NEP National Estuary Program
July 21, 1995
Background
In the Buzzards Bay Comprehensive Conservation and Management Plan(2), nitrogen inputs from
development and agriculture were identified as a potential threat to many portions of Buzzards Bay,
particularly in the many shallow, poorly flushed embayments that fringe the Bay. In the Management
Plan, West Falmouth Harbor was identified as a site of potential nitrogen management action.
To help better document management needs, in 1992 the Buzzards Bay NEP implemented jointly
with the Coalition for Buzzards Bay a citizens' water quality monitoring program to document
existing water quality conditions in Buzzards Bay embayments, including West Falmouth Harbor(3).

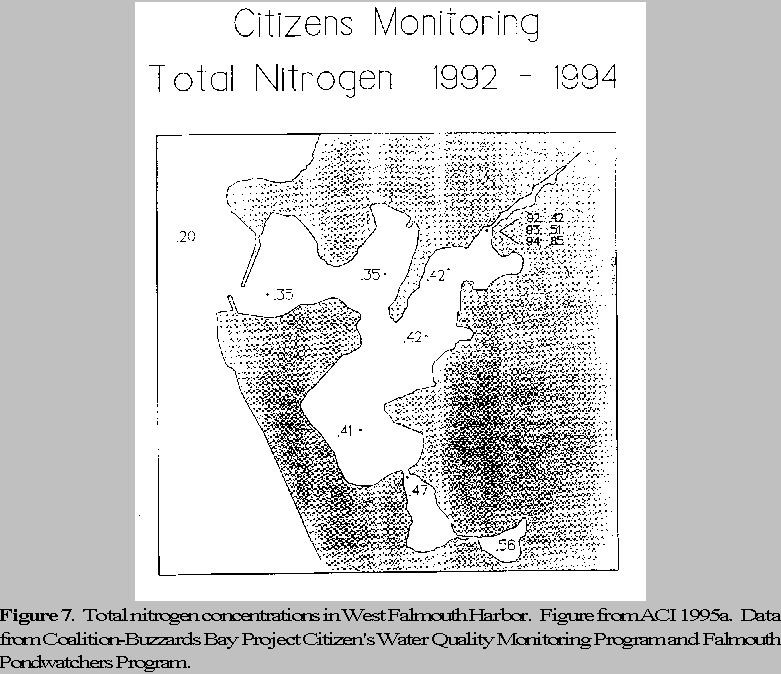

Water quality data for 1992 and 1993 (see attached newsletter) showed that West Falmouth Harbor
had very good water quality in the outer half of the embayment, but the innermost portions of the
embayment were more eutrophic, giving an overall water quality in the mid-range of embayments
examined in Buzzards Bay.
Between 1993 and 1994, the Buzzards Bay NEP conducted a subwatershed evaluation for
Buzzards Bay embayments (Buzzards Bay NEP, 1994). In this report (attached and sent to all
Boards of Selectmen), West Falmouth Harbor ranked very high in its value of natural resources and
high in the likely effectiveness of potential management action taken in its subwatershed (see
attachment), making West Falmouth Harbor the second highest ranked embayment in Buzzards Bay
for priority of management action. In this report, and in another prepared for the town by Howes et
al. (1992), the Falmouth Wastewater Treatment Facility was identified as the largest source of
nitrogen to the watershed.
Because of these findings, last year the Buzzards Bay NEP awarded a $10,000 grant to the Town
to conduct a flushing study for West Falmouth Harbor. This award was supplemented by $10,000
raised by the town at town meeting, and a $7,000 grant for the Cape Cod Commission. With this
funding, the town awarded a contract to Aubrey Consulting Inc. (ACI), which completed its study
earlier this year, and which is now under review by the town, the Cape Cod Commission, and the
Buzzards Bay NEP.
In addition, last year, with the approval of the Board of Selectmen, the Buzzards Bay NEP tested water samples from groundwater monitoring wells in conjunction with ongoing monitoring being conducted by the town and overseen by Falmouth's Utility Manager Raymond Jack. The Project has also been working with the Falmouth Planning Board to develop a parcel level buildout analysis and nitrogen loading analysis for the West Falmouth harbor drainage basin.
The findings of these efforts are summarized in this report.

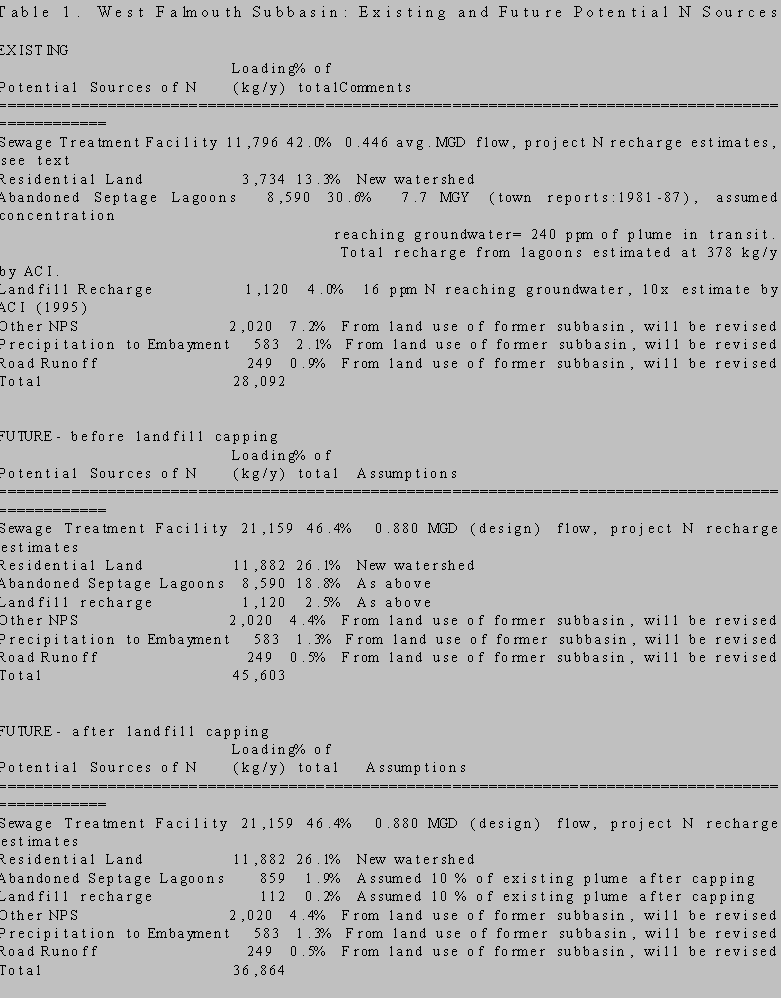

What are the sources of nitrogen to West Falmouth Harbor?
In analyzing N sources in the West Falmouth Harbor subbasin, Howes et al. (1992), the Buzzards
Bay Project (1994), and ACI (1995) concur that the largest existing source of nitrogen in the West
Falmouth Harbor watershed is the Falmouth Sewage Treatment Facility. In our 1994 study, the
Buzzards Bay NEP estimated that the facility accounted for about 65% of the watershed loading
with residential property, at 23%, being the second largest source (principally from septic systems
and to a lesser extent lawns).
The loading estimates for the Howes et al. and Project studies were based on a watershed subbasin
delineated by the Buzzards Bay NEP in cooperation with USGS in 1991. This watershed was
based on 10 ft groundwater contours. In this watershed delineation, Falmouth's Solid Waste
Disposal Facility ("landfill") was just outside of the watershed boundaries, but because of
uncertainties in the delineation, the landfill had been conservatively included in some loading
estimates for the harbor.
Earlier this year, the Cape Cod Commission developed a new groundwater map for the Sagamore
Groundwater Lens using new well data and 5 foot groundwater contours. The revised watershed for
West Falmouth Harbor (Fig. 1) is considerably different, and most importantly now unquestionably
includes the landfill. The landfill is important as a nitrogen source not only from the household and
commercial debris buried at the site, but also because the towns septage lagoons were in use at the
site between 1975 and 1987.
The plumes from these sources are still in transit to West Falmouth Harbor, and they must now be
included as part of any nitrogen management strategy for the Harbor. The three studies described
above included the landfill in the loadings to the embayment, but in each study it was only a minor
source because the assumed loads were underestimated. As described below, new well monitoring
conducted by the Town of Falmouth indicate that the landfill and abandoned septage lagoons is a
considerable larger source of nitrogen than previously recognized.
How important is the landfill as a source of nitrogen?
Howes et al. (1992) and Buzzards Bay NEP (1994) assumed the landfill contributed about 500
kg/y. ACI (1995a) assumed a lower estimated loading of 112 kg/y, based on an assumed 63 ppm
recharge concentration under the lagoons reaching groundwater. ACI did not take into account the
existing plume and discharge volumes in transit from the lagoons when they were in actual use. In
light of the town's recent groundwater monitoring data, none of these studies accurately estimated
the load from the landfill and abandoned septage lagoons.
Shown in Fig 2. is the annual volume of septage accepted at the lagoons during the 1980's as
reported in Town of Falmouth Annual Reports. It is unknown what volumes were received prior
to 1981 when a gate was installed at the lagoons and the town began keeping records. It is likely
that the 1970's volumes were at least as great as in later years because, even though Falmouth had
a smaller population, the Town annual reports note a severe problem with after hour unreported
dumping at the unsecured site (likely from septage haulers from outside Falmouth).
Septage is very high in nitrogen, typical averaging 588 ppm (US EPA, 1984). It is unclear how
much of the septage nitrogen from the abandoned septage lagoons actually reached groundwater

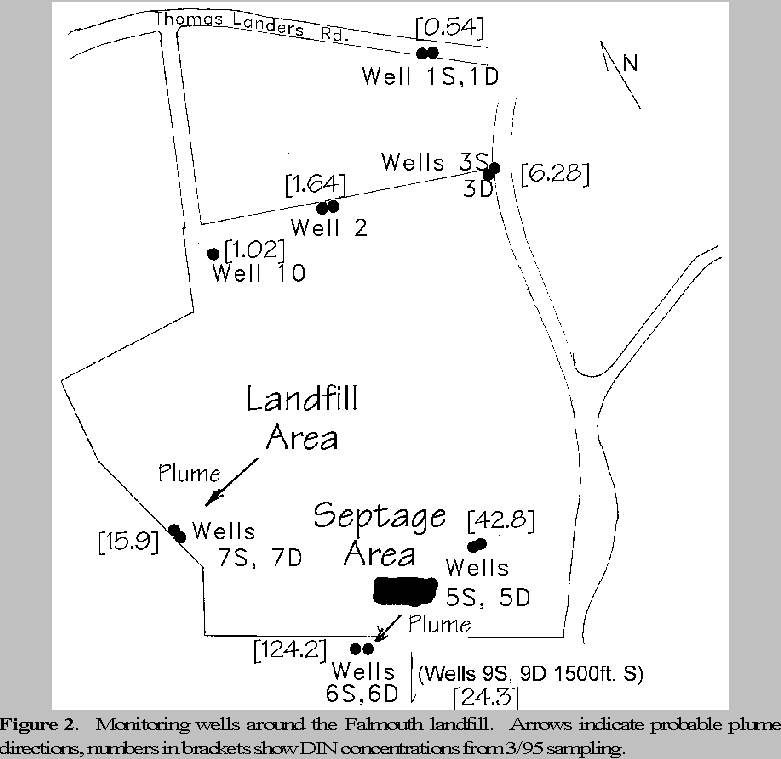

when the facility was in operation, but in March 1995, 7 years after the lagoons were abandoned,
monitoring conducted by the town of Falmouth showed ammonia concentrations in the
groundwater 300 yards downstream of the abandoned lagoons were a remarkable 124 ppm (well
558 and 6S, Fig. 3). This ammonia will eventually be converted to nitrate. Thus a plume
exceeding 120 ppm nitrogen is originating from the buried lagoons today, merely through rainfall
recharge. In the absence of any documentation of concentrations in the leading edge of the
plume (from the period when the facility was active), we assumed for our calculations that 40%
of the septage nitrogen reached groundwater (i.e. a nitrate+ammonia plume of about 240 ppm).
The rest of the landfill is a less important nitrogen source to the Harbor, but groundwater
concentrations at well 7S were 15.8 ppm, but still more than an order of magnitude higher that
what ACI used (1.5 ppm) in their loading assessment. The landfill plume is also high in certain
benzene compounds. These compounds are less of a marine pollution issue than a drinking water
concern, and are not being addressed in this study, but should be reviewed by the Falmouth
Board of Health.

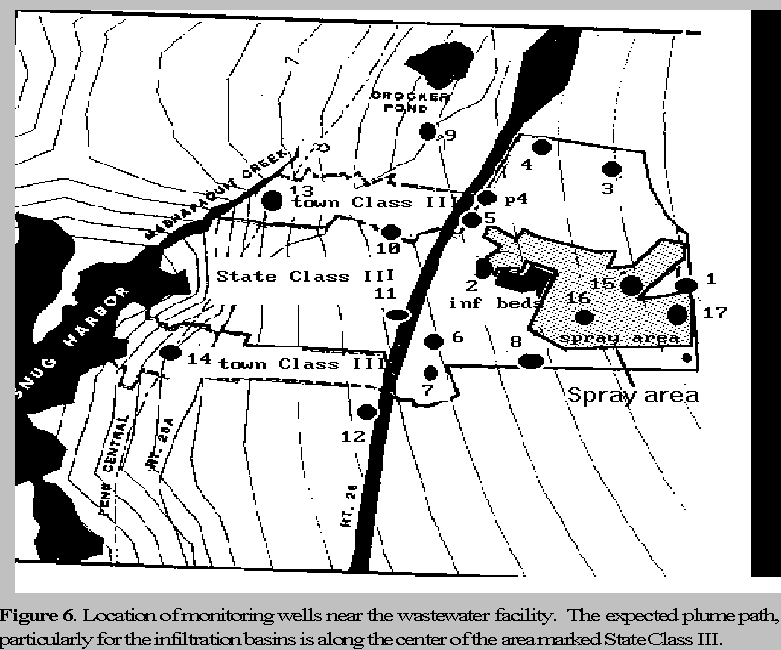

What do the towns monitoring wells tell us about plume migration?
It has been noted in the press that most of the town's groundwater monitoring wells in West
Falmouth do not show appreciable groundwater contamination. As noted by the Buzzards Bay
Project at a Board of Selectmen's meeting last fall, this is true with respect to the town's
wastewater primarily because most of the down gradient monitoring wells are not sited along the
principal path of the sewage treatment facility plume (Fig. 4). That is, the wells were primarily
sited on either side of the so-called "Class III area" (principal path of the plume) in order to
determine if groundwater outside of the Class III became contaminated. Except for the wells
adjoining or under the spray irrigation area or infiltration ponds (2, 15, 16, 17), only wells 6 and
11 were placed down gradient in the plume. We believe however that well 11 was placed at too
great a depth and that the sampling screens are in fact under the plume (see Fig. 5
), and cannot be
used to track the plumes progress or nitrogen concentrations.(4)
Under the spray irrigation areas, groundwater nitrate concentrations sometimes exceed 12 ppm(5).
Until the last sampling date, well 6, probably near the periphery of the spray irrigation area plume
(but not infiltration basins, has been consistently above 5 ppm since fall 1992. The drop at well 6
could be due to the reduction in the use of the spray area since 1994.
Based on groundwater flow rates and water quality data, particularly nitrogen levels in Snug
Harbor, ACI, the BBP, and Brian Howes believe that the leading edge of the plume is just now
reaching the harbor during the past few years. Without additional monitoring wells it will be
difficult to develop a good estimate of how much nitrogen is now entering the bay from the
plume at this time, and how much the loading rates will increase in the next few years.
Last September, the Town of Falmouth changed laboratories measuring nutrients in the
groundwater. The Buzzards Bay NEP found good agreement between the new Town
contractor (Envirotech Laboratories and the Buzzards Bay NEP's contractor (Howes
Laboratory, WHOI) on the September 1994 sampling (see Fig. 6).
Like the monitoring wells at the Sewage Treatment Facility, the monitoring wells around the
landfill are ill suited to document the travel path or loadings to West Falmouth Harbor, and most
are not along the path of the plume (Fig. 3). Only well 7 is useful for estimating loading from
recharge from solid waste disposal area and wells 6 and 558 (not shown on map) are in the plume
path of the septage disposal area. In Fig. 3, dissolved inorganic nitrogen concentrations
(ammonia+nitrate) from a March 1995 sampling are shown in brackets(6). Generally, wells with
DIN concentrations over 5 ppm usually had most of their DIN as ammonia. Where two wells are
located together (two depths, D=deep, S=shallow), only the higher DIN value for the site is
shown. Not shown on the map is a new well 558, which is several hundred feet down gradient
along the plume path from wells 6S, 6D. Well 558d had a DIN concentration 113.9 ppm in the
3/95 sampling, consistent with the 124.2 ppm DIN in well 6S. Both wells 6s and 558d had DIN
concentrations over 100 ppm in a 10/94 sampling as well. Presumably most of the ammonia in
the groundwater will be eventually converted to nitrate down gradient of these sites. For
comparison, in the 3/95 sampling, upgradient well 1D had a DIN concentration of less than 0.1
ppm (below 0.1 ppm nitrate, the detection limit+ 0.04 ppm ammonia). These values probably
represent the background DIN concentrations of groundwater in West Falmouth before
contamination from the landfill.
It is unknown if the septage lagoon plume has yet reached West Falmouth Harbor. Considering
that the abandoned lagoons are approximately 11,000 feet from the shore of the bay, and a 1.5
foot per day average groundwater travel time is typical for many parts of Cape Cod, 20 years may
be a conceivable lag time between inputs at the landfill and inputs to the receiving waters.
Actual transit time is most likely to be between 15 and 30 years. Thus inputs from 1975 at the
septage lagoons site could be arriving or could soon arrive at the Harbor
What is the status of the buildout study and future loading analysis?
The Buzzards Bay NEP has developed a spreadsheet application for conducting buildout and
loading assessments. The Falmouth Planning Department has provided the Buzzards Bay NEP
with the relevant parcel data for the new Cape Cod Commission watershed delineation
completed this spring, and these data which are shown in Appendix A. The preliminary findings
of this evaluation are shown in the Table 1. These findings are being reviewed by the Planning
Department and are subject to future revision. In particular the actual property frontage on
unsubdivided parcels is a crude estimate based on parcel area, and actual frontages will need to
be calculated by the planning department. Despite these limitations, it is clear there is
considerable growth potential in this watershed.
Revised loading estimates for the West Falmouth Harbor watershed
In Table 2 are shown revised potential loadings from the various existing sources discussed above. One of the most significant findings in the current analysis is that plumes from the landfill, especially from the abandoned septage lagoons appear to be the second largest source of nitrogen in the watershed.
Why was the flushing study conducted?
The Town of Falmouth requested and received funding from the Buzzards Bay NEP to conduct
a flushing study so that the town could apply the tiered nitrogen loading limit strategy identified
in the Buzzards Bay Comprehensive Conservation and Management Plan. This mass-loading
nitrogen management strategy was developed by the Buzzards Bay NEP and has been adopted
by the Cape Cod Commission.
The Town of Falmouth hired ACI to conduct this study. ACI found that the estuary as a whole
had a hydraulic residence time of 0.52 days, but that uppermost reaches of the estuary such as
Snug Harbor, Harbor Head, and Oyster Pond have residence times of 4.5, 14.8, and 106.8 days
respectively . Application of the Buzzards Bay NEP's methodology requires an average

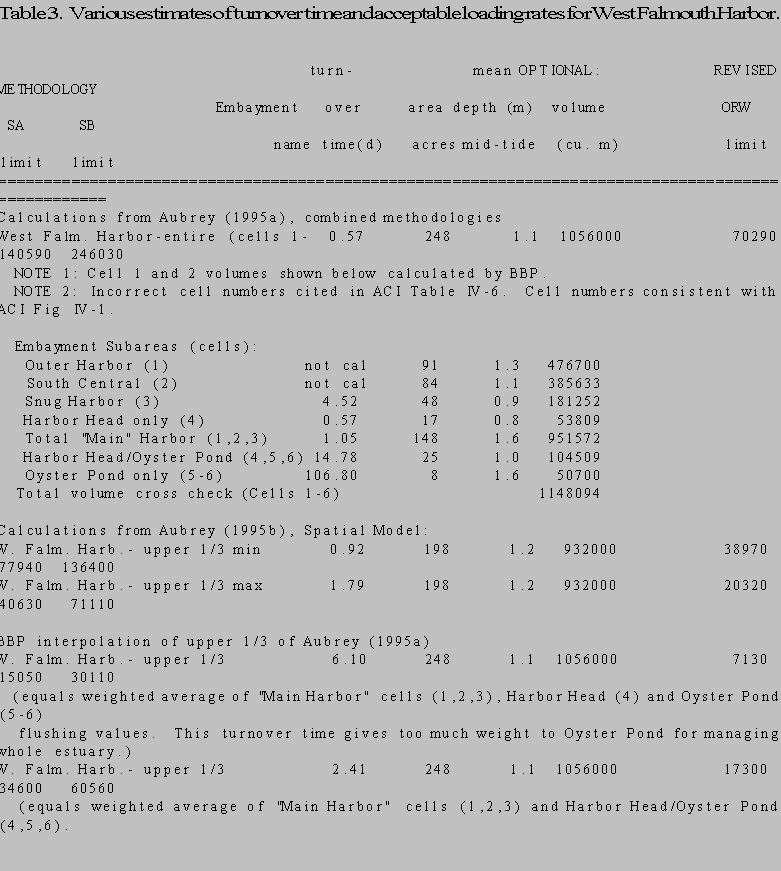

flushing time for the upper 1/3 of the estuary which was not estimated by ACI, but an estimate of
this calculation is shown in Table 3. If for example the upper 1/3 of the estuary has an average
residence time of 2.4 days(7) , then the nitrogen loading limit for this estuary if it had an ORW
classification (most stringent level of protection) should be 17,300 kg/y. If the estuary were
classified as SA (a mid or typical level of protection), the loading limit would be 34,600 kg/y.
When discussing possible nitrogen loading limits, and when considering well nitrogen
monitoring data as described in the preceding section of this report, there is the tendency to focus
on acceptable groundwater concentrations of nitrogen on Cape Cod. However, when it comes to
protecting coastal embayments, it is the mass load of nitrogen (that is volume times
concentration) that must be evaluated, and this loading rate will translate into an embayment-specific ground water concentration. For example, if the West Falmouth Harbor watershed were
to have a nitrogen loading target of 34,600 kg/y, this would translate to an average watershed
groundwater concentration target of 6.3 ppm. If the watershed had a 17,300 kg/y limit, then the
groundwater target would be 3.2 ppm.
It is worth noting that the Town of Falmouth already has a nitrogen loading bylaw in place, and
ACI made an attempt to evaluate West Falmouth Harbor conditions, now and in the future. The
ACI report notes that water quality monitoring conducted by the Project-Coalition Citizens'
Water Quality Monitoring Program, and Falmouth's Pond Watcher Program, show that total
nitrogen concentrations in most of West Falmouth Harbor already exceed the town's most
stringent total nitrogen limit of 0.32 ppm, and many portions of the Harbor exceed the middle
level of protection of 0.5 ppm (see Fig. 7). ACI attempted to predict how total nitrogen
concentrations in the Harbor would be elevated both as the town's sewage treatment facility
plume reached the Harbor, and under buildout conditions. The Buzzards Bay NEP will shortly
complete its review of this portion of the draft report. ACI will need to revise their report
because they did not consider the septage plume in transit from the period of when the septage
lagoons were in use, because their assumed nitrogen loadings from recharge of the septage
lagoons are too low, and because the watershed boundaries and therefore watershed buildout
potential have changed.
Considering the fact that this watershed has two major point sources of pollution, the Falmouth
wastewater treatment plant and the Falmouth landfill, and that water column total nitrogen
concentrations already exceed the most stringent limits in Falmouth's nitrogen loading bylaw, it
may be unrealistic to pursue a ORW designation for West Falmouth Harbor. Rather, a SA limit
is far more achievable. Adoption of the SA limit however will not likely be adequately
protective of the most poorly flushed areas like Oyster Pond and Snug Harbor. Alternatively, the
Town of Falmouth could pursue some intermediate level of acceptable loading for this estuary.
How will the upgrades to the Falmouth Sewage Treatment facility affect nitrogen loading to West Falmouth Harbor?
The installation of an aerator, and other improvements could partly decrease nitrogen loading to
the facility through increased denitrification. Because these improvements were not really
intended to reduce nitrogen from the plant, the degree of nitrogen removal will need to be
documented in wells immediately down gradient of the infiltration ponds. We expect that even
with these potential nitrogen loading reductions, the sewage treatment facility would remain the
largest source of nitrogen in the watershed.
What are the next steps?
It appears that existing nitrogen loading to West Falmouth Harbor will exceed the most stringent
water quality standards under Falmouth's Nutrient Bylaw and the Buzzards Bay NEP's tiered
loading strategy and will approach or exceed the mid level limit for nitrogen loadings under both
management strategies under buildout conditions. In the future, plume migration, increased
development, or increased discharge from the treatment plant could cause degradation of the
waters and living resources in West Falmouth Harbor. If a nitrogen management strategy is
adopted for the harbor, such a strategy could include a range of options such fast tracking the
capping of the town landfill in the vicinity of the abandoned septage lagoons, improving nitrogen
removal at the sewage treatment facility, limiting buildout in the watershed through zoning
changes or procurement of open space, or upgrading failed septic systems with nitrogen
removing alternative septic systems.
Clearly many assumptions were made in developing the loading rates and limits included in this
report, and some of these will need to be revised. It will be particularly important to estimate the
amount of nitrogen in the landfill plume now migrating to the harbor. The Buzzards Bay NEP
will meet shortly with the Falmouth Planning Department and the Cape Cod Commission to
discuss the available information, identify information gaps, and explore what steps required to
define an appropriate nitrogen management strategy for West Falmouth Harbor.
Report Highlights
Overall, West Falmouth Harbor now has good water quality and ranks in the top 1/3 of Buzzards Bay embayments. The upper most regions of the estuary however have elevated nitrogen concentrations and the embayment will likely be sensitive to additional inputs.
In earlier nitrogen loading evaluations, the town's sewage treatment facility as the principal source of nitrogen in the watershed. A new delineation prepared by the Cape Cod Commission now means that the Falmouth Solid Waste Disposal Facility site is also within the harbor's watershed. The plume from the landfill, particularly from the area of the now abandoned septage lagoons, are a very significant source of nitrogen to the bay. The plume from the abandoned lagoons, which were in use from 1975 to 1987, is now in transit to West Falmouth Harbor, but it is unknown if it has yet reached the estuary. This spring, wells monitored by the town near the landfill showed ammonia concentrations in excess of 120 ppm still leaching from these buried abandoned lagoons. Since most of this ammonia is likely converted to nitrate downstream in the plume, a plume with a concentration perhaps as high as 240 ppm plume of nitrate (or nitrate plus ammonia) from operation of the septage lagoons is now travelling through the watershed. These concentrations well exceed state and county drinking water standards of 10 and 5 ppm nitrate respectively.
Existing monitoring well locations downstream of the Town's sewage treatment facility and landfill are inadequate to document the movement and nitrogen loadings associated with these plumes.
It appears that the leading edge of the sewage treatment facility plume is now reaching West Falmouth Harbor. We expect that water quality will continue to decline in West Falmouth Harbor as the full extent of the plumes from the landfill and treatment facility reach the harbor.
Nitrogen management options for the West Falmouth Harbor watershed include fast tracking
the capping of the portion of the landfill over the abandoned septage lagoons, further enhancing
the nitrogen removal capabilities of Falmouth's sewage treatment facility, limiting inputs from
new development (e.g. changing minimum lot size on unsubdivided land), or requiring the use of
alternative nitrogen removal septic systems on new and existing substandard systems.
References Cited
Aubrey Consulting Inc. (ACI) 1995a. Hydrodynamic and water quality study of West Falmouth
Harbor, MA. March 1995, 81 pp.
Aubrey Consulting Inc. (ACI) 1995b. Estimation of flushing rates in selected Buzzards Bay
embayments. January 1995, 46 pp.
Buzzards Bay NEP. 1994. A Buzzards Bay embayment subwatershed evaluation: establishing
priorities for nitrogen management action. Draft Final, May 3, 1994, 108 pp.
Howes, B.L., D.W. Bourne, and N.P. Milham. 1992. An assessment of nitrogen loading to West
Falmouth Harbor from the Falmouth Technology Park and other sources. Prepared for the
Falmouth Economic Development and Industrial Corporation, July 1, 1992. 14 pp.
US EPA. 1984. Septage treatment and disposal handbook. EPA-625/6-84-009. 300 pp.
1. The Buzzards Bay National Estuary Program is a planning and technical assistance unit of Massachusetts Coastal Zone Management, and which is jointly funded by the Commonwealth and the US EPA. We are sometimes confused with two other Buzzards Bay organizations with which we closely work. One of these organizations is the Coalition for Buzzards Bay, which is a not-for-profit education group noted for its annual report card and Citizen's Water Quality Monitoring Program which is funded by the Project and jointly implemented by both the Project and Coalition. The other organization is the Buzzards Bay Action Committee which is a not-for-profit lobbying group which advises the Buzzards Bay NEP on funding and technical assistance needs of Buzzards Bay municipalities.
2. 2 This management plan for Buzzards Bay, which was approved by Governor Weld in 1991, was drafted by the Buzzards Bay National Estuary Program.
3. 3 West Falmouth Harbor has also been monitored by Dr. Brian Howes of the Woods Hole Oceanographic Institution as part of Falmouth Pond Watchers program.
4. 4 In Figure 5, the likely vertical migration range for deep migration was based on a slower horizontal groundwater movement (1 ft/day) and high recharge (16-18" yr), and for shallow migration was based on fast horizontal groundwater movement (3 ft/day) and little recharge (9-10"/y).
5. 5 Well monitoring data discussed in this report from DeFeo, Wait and Pare, Inc. 1994. Report on groundwater monitoring for Falmouth Wastewater Treatment Plant, Sampling Program Sample Series #17, March 1994, and town of Falmouth DPW report to DEP dated December 1, 1994.
6. 6 Data from a Barnstable County Health and Environmental Department Laboratory Analytical Report dated April 21, 1995.
7. 7 The upper 1/3 of the estuary includes some very well flushed areas and the above referenced
poorly flushed coves. This value, from Table 3 excludes Oyster Pond.
Back
